Skived High Temperature Fiberglass Tape Bronze Filled
Quick Detail:
1.Minimal Water Absorption
2.Excellent Machining
3.Acid and chemical resistant
4.Good Electrical insulation
5.High working temperatures
6.Low friction
7.Low minimum order quantity
8.Good services
Description:

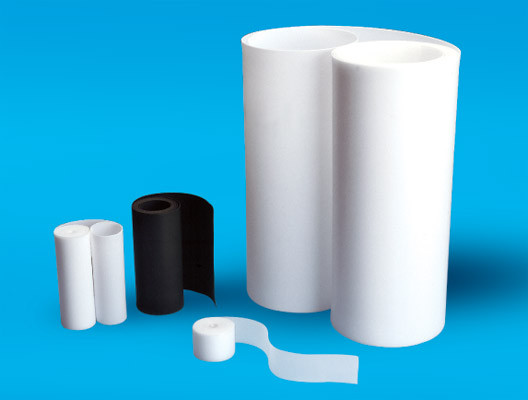

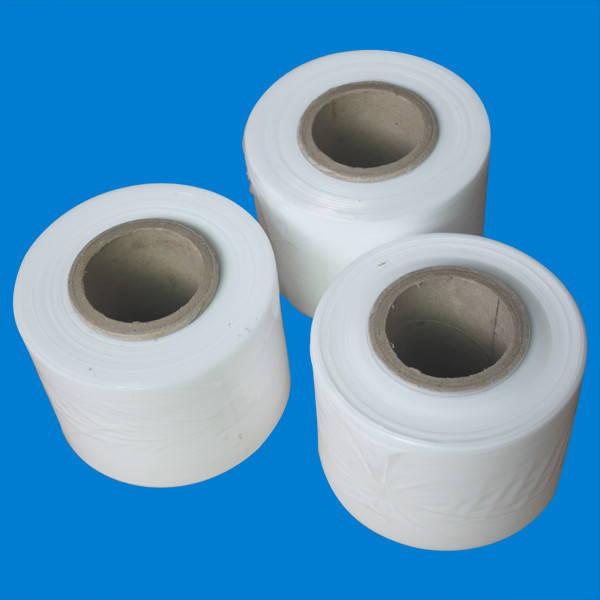

Skived PTFE tape commonly known as film or PTFE film - is manufactured by technics of
compacting, sintering, rotary cutting with PTFE granular resin. As PTFE has a very low co-efficient of
friction, so the surface of skived PTFE film has similar friction levels to ice. Skived PTFE
film can work at -180°C ～+260°C and is the best electrical insulator of all known plastics.
Skived PTFE tape can be used as lining, seal components, wire isolation, slide block, gasket,
seal, dielectric material and so on.
Applications:
1.Lining,
2.sealing
3.lubricating material and dielectric at any frequency.
4.Wire insulation,
5.electrical instrument insulation, especially in the fields of making capacitors.
Specifications:
|
Item |
Thickness (mm) |
Thickness Allowance |
Width (mm) |
Width Allowance |
Length (mm) |
|||||
|
Directional |
0.015,0.030 0.020,0.035 0.025,0.040 |
±10% |
30-90 |
±0.3 |
≥50 |
|||||
|
Half-directional |
0.030,0.035 0.05-0.10 |
±10% |
60-90 |
±0.3 |
≥100 |
|||||
|
Non-directive |
0.020,0.025 0.030,0.035 0.040,0.10 |
±10% |
60-90 |
±2.0 |
≥50 |
|||||
|
Item |
Unit |
High-density |
Semi-density |
Common |
||||||
|
Tensile Strength |
MPa |
≥30 |
≥20 |
≥10 |
||||||
|
Tear Elongation |
% |
≥30 |
≥60 |
≥100 |
||||||
|
1MHz Dielectic Loss Tengent |
|
2.5×10-4 |
-- |
-- |
||||||
|
1MHz Dielectic Constant |
|
average 1.8-2.2 |
-- |
-- |
||||||
|
DC Breakdown Voltage |
KV/M |
average 200 |
average 60 |
average 30 |
||||||
Remarks:
Skived PTFE tape is available in other sizes and thickness according to customer's requirement.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
