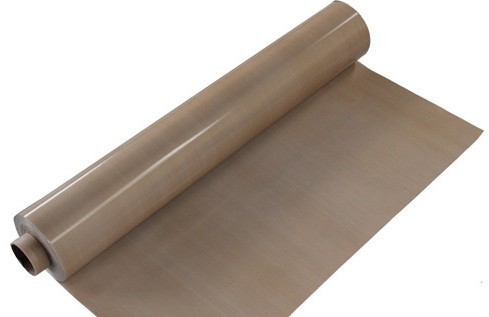

Etched PTFE Sheet Poly Tetra Fluoro Ethylene For Manifolds

Etched PTFE Sheet Poly Tetra Fluoro Ethylene For Manifolds

Quick Detail:

1.one side etched or two sides etched can stick on the pumps,tanks and steel sheet

2.Size can be made based on customers' detailed requirement

Description:

Etched PTFE sheet can be done to any shape or size, most preferred or most commonly used is

one side etching Sheet.Etched surfaces will discolor to a grown appearance.

It is also called PTFE Etching Sheet. It is an amazing non-stick material, but what about when you need

to glue it to the surface of another material ? In order to bond standard PTFE to another surface such

as stainless steel, a process called "etching" is required. Typical applications would include the lining

of chemical process tanks or other equipment used in caustic environments. When bonding is needed,

sodium ammonia etching is usually the most economical answer. This process uses of a mixture

of sodium and ammonia that is formulated to create a bondable surface both quickly and efficiently.

From microchips to full size rolls, fluoropolymers of any shape or complexity, including tape, sheet,

tubing, molded shapes & machined parts of any configuration can be etched & bonded. This treatment

can be accomplished on one or more surfaces, or selectively within close tolerances.

Applications:

1.Seals and gaskets

2. Valve and fitting components

3. Pump parts

4. Manifolds

5. Semiconductor equipment

6. Scientific equipment

7. Medical equipment

8. Chemical resistant tubing

9. Capacitor dielectric

10.wire isolation

11.electrical instrument isolation

Specifications:

STOCK DIMENSION:

Remarks:

Etched PTFE sheet are available in other sizes and thickness according to customer's specific

requirements.

Competitive Advantage:

1.Excellent Chemical property

2.Virgin and recycled materials available

3.Any sizes available

4.Fast Usually
