High Density Carbon Filled Sheet Material 2.1 - 2.3 g/cm³

Discover Kaxite PTFE's High Density Carbon Filled Sheet Material with a density of 2.1-2.3 g/cm³, ideal for demanding industrial applications. Its superior strength and low friction ensure reliable performance in seals, gaskets, and bearings. Perfect for engineers and manufacturers, it solves wear and durability issues, offering unmatched precision and longevity compared to standard materials. Choose innovation and efficiency with Kaxite PTFE.

Send Inquiry

Product Description

Quick Detail:

Material: Graphite Filled, Fiberglass Filled, Bronze Filled, Carbon.Filled etc.

Style: Filled PTFE sheet

Thickness: 1.0mm ~ 100mm

Width: 150mm ~ 2000mm

Density: 2.1 ~ 2.3 g/cm3

Temp: -180°C ~ + 260°C

Description:

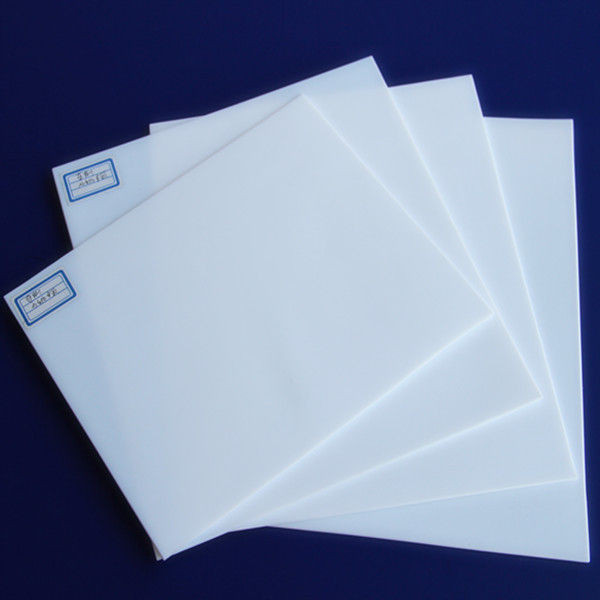

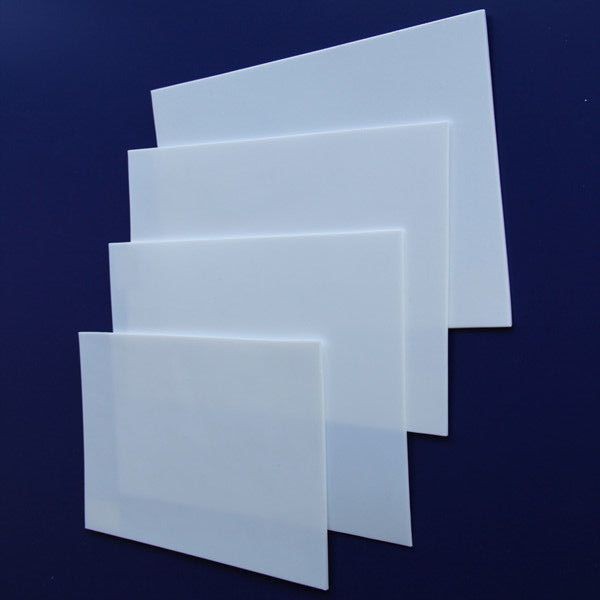

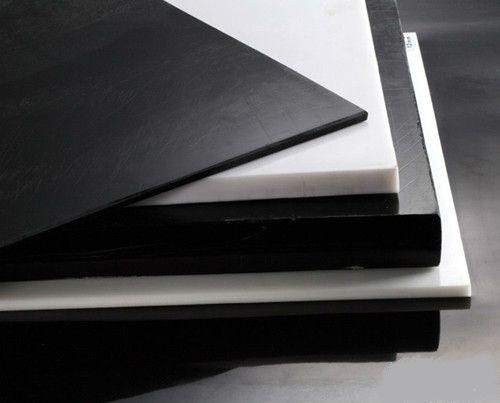

Filled PTFE sheet is manufactured by technics of molding with PTFE granular resin. As PTFE has

a very low co-efficient of friction, so the surface of molded PTFE sheet has similar friction levels

to ice. Filled PTFE sheet can work at -180°C ～+260°C and is the best electrical insulator of all

known plastics.Filled PTFE sheet has strong corrosion resistance and friction-resistance,By adding

filler such as glass fiber,carbon fiber,copper powder,graphite,asbestos,MOS2,AL2O3,carbon powder,

ceramic fiber,metal powder,polyamide,PS,the hardness,compression strength and abrasion resistance

of the products is improved ,in addition,it will have good heat conductivity and low heat expansion

coefficient

Glass Fiber:	Increases compressive strength, rigidity and wear. Reduces creep and cold flow Minimal effect on chemical and electrical properties
Carbon:	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance Various types and amounts of carbon can be added to alter conductivity
Graphite:	Reduces coefficient of friction Reduces initial wear Increases strength
Molybdenum Disulfide:	Increases hardness, stiffness, and wear Minimal effect on chemical and electrical properties
Bronze:	Increases hardness and wear resistance Increases dimensional stability and compressive strength Not suitable for corrosive or electrical applications

Applications:

1.Seals and gaskets

2. Valve and fitting components

3. Pump parts

4. Manifolds

5. Semiconductor equipment

6. Scientific equipment

7. Medical equipment

8. Chemical resistant tubing

9. Capacitor dielectric

10.wire isolation

11.electrical instrument isolation

Specifications:

Project Name	Unit	Result
Apparent Density	g/cm3	2.1 ~ 2.3
Tensile Strength	Mpa	≥ 14.0
Ultimate Elongation	%	≥ 150
Thick( mm )	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16,
Thick( mm )	18, 19, 20, 22, 24, 25, 26, 28, 30, 35, 40, 50
Width ( mm )	100mm, 300mm, 1000mm, 1220mm
length ( mm )	100mm, 300mm, 1000mm, 1220mm, 2000mm

STOCK DIMENSION:

1220mm x 1220mm		1000mm x 1000mm
Thickness ( mm )	Weight	Thickness ( mm )	Weight
1.0mm	3.42kg	1.0mm	2.30kg
2.0mm	6.85kg	2.0mm	4.60kg
2.5mm	8.56kg	2.5mm	5.75kg
3.0mm	10.27kg	3.0mm	6.90kg
4.0mm	13.69kg	4.0mm	9.20kg

Remarks:

Filled PTFE sheets are available in other sizes and thickness according to customer's specific

requirements.

Competitive Advantage:

1. Excellent Chemical property

2. Virgin and recycled materials available

3. Any sizes available

4. Fast Usually
