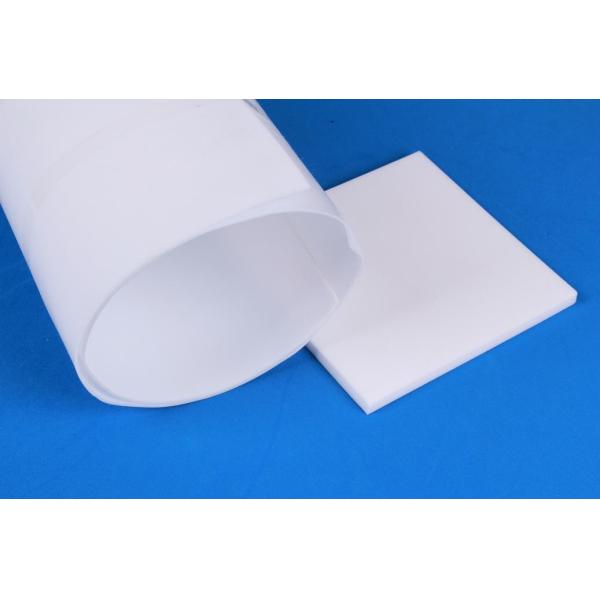

Skived PTFE Sheet / White Sheet Material 50mm Thickness

Skived PTFE Sheet / White Sheet Material 50mm Thickness

Quick Detail:

1.High dielectric properties

2. Non-toxic

3. Superb electrical insulating properties

4. A wide working temperature range from 260°C down to liquid nitrogen temperatures (-260°C)

5. Lowest coefficient of friction of any known material.

6 Tremendous chemical resistance

7. Limitations: low compressive & tensile strength.

8 Outstanding chemical resistance

9. Extremely low friction

10. Soft and formable

11. Good bearing and wear properties (bearing grade)

12. Good weathering resistance

13. Performs well at elevated temperatures

14.Virgin and recycled materials available

15.Any sizes available

Description:

PTFE resin is first molded into work-blank and then skived.

Skived PTFE sheets are known as flexible or thin sheets.It recognized as the first fluorocarbon

material in the world and referred to as PTFE or , it is the most chemically resistant plastic known.

It has a working temperature range of minus -180°c to 260°c It also has a very low coefficient of friction

excellent thermal and electrical insulation properties and is commonly used in food contact applications.

It provides good thermal stability and has good electrical properties, but is not suitable for wear

application and is difficult to bond.

Applications:

1.Seals and gaskets

2. Valve and fitting components

3. Pump parts

4. Manifolds

5. Semiconductor equipment

6. Scientific equipment

7. Medical equipment

8. Chemical resistant tubing

9. Capacitor dielectric

10.wire isolation

11.electrical instrument isolation

Specifications:

STOCK DIMENSION:

Remarks:

Skived PTFE sheets are available in other sizes and thickness according to customer's specific

requirements.

Competitive Advantage:

1.Excellent Chemical property

2.Virgin and recycled materials available

3.Any sizes available

4.Fast Usually
