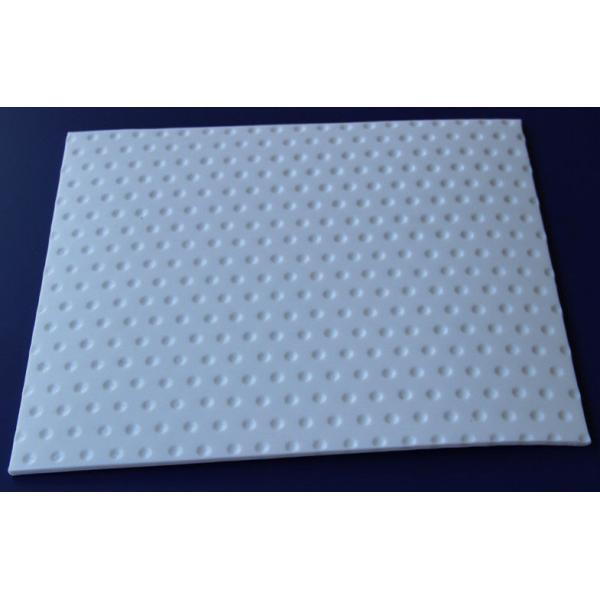

Water resistance PTFE Sheet PTFE Slide Bearing For Pipelines
Quick Detail:
1.Low friction excellent dielectric properties
2.Virtually no lubrication requirement
3.Light weight Non-flammable, will not melt
4.Resistant to corrosion and abrasion
5.Impact resistance
6.Stable chemical properties
7.Oil resistance
8.High temperature resistance
9.Low temperature resistance
10.water resistance
11.Electric insulation;good dielectric in mediums.
12.Soft and formable,Outstanding chemical properties etc.
Description:
PTFE slide bearing commonly known as bearing or PTFE bearing - is manufactured by
technics of molding, sintering and finalizing the design to various sizes with PTFE suspension resin.
It can be adhered to rubber and metal with one side etched. And different fillings can be used to
achieve special demands. PTFE slide bearing can work at -180°C ～+260°C and is the best electrical
insulator of all known plastics.
PTFE bearing slide is made from high strength PTFE suspension resin by methods of moulding,
sintering and finalizing the design to various sizes. Different fillings can be used to achieve special
demands. It can also be adhered to rubber and metal with one side etched.
Applications:
PTFE slide bearing can be used as
Pipelines
Heat exchangers
Concrete decks
Oil & water transportation
Storage tanks/plants
Buildings - multi-storey car parks, civic centres etc
Subsea pumping stations
Pedestrian walkways
Specifications:
|
Property |
Unit |
Result |
||||||
|
Apparent Density |
g/cm3 |
2.10-2.25 |
||||||
|
Tensile Strength ≥ |
MPa |
30 |
||||||
|
Crack Elongation ≥ |
% |
250 |
||||||
|
Working Temperature |
°C |
-180°C ~ + 260°C |
||||||
|
Round type |
||||||||
|
Diameter(mm) |
Thickness(mm) |
Diameter(mm) |
Thickness(mm) |
|||||
|
140 |
2-10 |
340 |
3-10 |
|||||
|
150 |
2-10 |
360 |
3-10 |
|||||
|
160 |
2-10 |
415 |
3-10 |
|||||
|
180 |
2-10 |
740 |
3-10 |
|||||
|
210 |
2-10 |
852 |
3-10 |
|||||
|
240 |
3-10 |
1200 |
3-10 |
|||||
|
320 |
3-10 |
1500 |
3-10 |
|||||
|
Square type |
||||||||
|
Size(mm) |
Thickness(mm) |
|||||||
|
300*300 |
2-60 |
|||||||
|
400*400 |
2-60 |
|||||||
|
500*500 |
2-60 |
|||||||
|
600*600 |
2-60 |
|||||||
|
800*800 |
2-60 |
|||||||
|
900*900 |
2-60 |
|||||||
|
1000*1000 |
2-60 |
|||||||
|
1200*1200 |
2-60 |
|||||||
|
1500*1500 |
2-60 |
|||||||
Remarks:
PTFE slide bearings are available in other sizes and thickness according to customer's requirement.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
